Target Illumination Laser Source (Pulsed)

Leonardo's 1550 nm laser illuminator product line pairs our high-power, laser diode sources with our advanced beam shaping and conditioning optics. Targeting Illumination Lasers (TIL) are necessary for Directed Energy Systems to facilitate the identification and tracking of potential threats such as rockets, artillery, and missiles (C-RAM) and unmanned aerial systems (C-UAS). Direct diode sources offer size, weight, and performance advantages over competing fiber laser-based solutions.

Request for Information

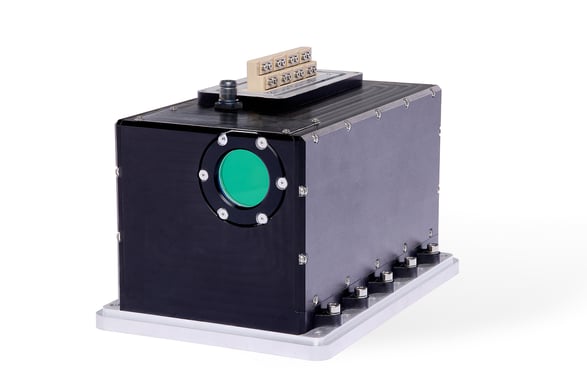

Target Illumination_Product Picture



  • Key Features
  • Key Benefits
  • Typical Specifications
  • High pulse energy
  • Short pulse duration (microseconds)
  • High repetition rate
  • Homogenized output beam
  • Low size and weight
  • Direct diode efficiency
  • Compact solution for target illumination
  • Ease of integration
  • Solid state reliability
Parameter (at 20°C) Units Typical Value
Wavelength nm 1550
Peak Power Output W 1000
Energy Per Pulse mJ 5
Spectral Width nm <50
Beam Uniformity¹ (Peak to Vallery Variation) % +/-10
Beam Parameter Product² mm ⋅ mrad 13.5 x 13.5
Rise and Fall Time ns 100
Pulse Duration μs 5
Max Duty Cycle  % 1
Max Pulse Repetition Frequency kHz 2
Dimensions mm 240 x 180 x 140
Coolant   EGW 60/40
Flow Rate lpm 4
Coolant Temperature °C 15
Pressure Drop psi 10-12

¹With Homogenizer

²Beam Parameter Product (BPP) is the product of a laser beam's divergence angle (half-angle) and the radius of the beam at its narrowest point (the beam waist)
