Single Array - T6
Fluid Cooled Laser Diode Arrays
CW power to 2500 W or QCW power to 25 kW
- Key Features
- Typical Specifications

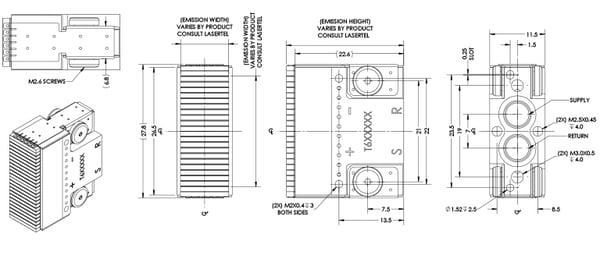

- Mechanical Specifications
- Handling Guide
Key Features
- 760 nm to 1700 nm
- Filtered water, not deionized
- Non-water alternative cooling fluids
- Scalable building block format
- Small bar-to-bar pitch for increased brightness
- Hard soldered construction
- Advanced beam conditioning
- Low pressure and water flow requirements
- Multi-wavelength in a single array
| 760 nm - 1100 nm | |||||
|---|---|---|---|---|---|
| Typical Parameters (at 25°C) | Units | Typical Value | |||
| Array Peak Output Power | W | 1920 | 2400 | 2880 | 50000 |
| Bar Emission Length | mm | 10 | |||
| Operation Mode | CW | Pulsed | |||
| Operating Current | A | 90 | 105 | 125 | 1,100 |
| Number of Bars | # | up to 24 | up to 50 | ||
| Operating Voltage per Bar (760 nm-830 nm) | V | 1.9 | 2 | ||
| Operating Voltage per Bar (850 nm-1100 nm) | V | 1.7 | 1.8 | ||
| Power Conversion Efficiency | % | 58 | 56 | ||
| Bar to Bar Pitch | mm | 1.0 | 0.35 | ||
| Beam Divergence | |||||
| Fast Axis (FWHM) | ° | 36 | 32 | ||
| Slow Axis (FWHM) | ° | 10 | |||
| 1400 nm - 1700 nm | ||
|---|---|---|
| Typical Parameters (at 25°C) | Units | Typical Value |
| Array Peak Output Power | W | 430 |
| Bar Emission Length | mm | 10 |
| Operation Mode | CW | |
| Operating Current | A | 80 |
| Number of Bars | # | up to 24 |
| Operating Voltage per Bar | V | 1.5 |
| Power Conversion Efficiency | % | 25 |
| Bar to Bar Pitch | mm | 1.0 |
| Beam Divergence | ||
| Fast Axis (FWHM) | ° | 27 |
| Slow Axis (FWHM) | ° | 10 |
The following guide is provided to assist you with the proper handling and installation of your laser diode product. Please note that Leonardo does not warranty its product for damage due to mishandling or misuse. If, after reviewing this guide, you have additional questions about the safe handling and use of your laser diode components, please contact your Leonardo representative for assistance prior to use.
