HAWK MWIR

Medium Wave Infrared (MWIR) Detector

The Hawk Medium Wave Infrared (MWIR) detector is a compact and lightweight 640 x 512 Mercury Cadmium Telluride (MCT) Integrated Detector Cooler Assembly (IDCA). The Hawk MWIR detector is designed for high-performance, low-cost imaging in the 3 - 5 μm waveband.

Using the MCT process, the Hawk MWIR detector provides the highest environmental integrity and the superior performance of focal plane detectors.

Low cost
Lightweight
Compact
High resolution

Snapshot or rolling readout operation
Simple to use
Medium wave 3 - 5 μm
Small element pitch enables miniaturization of the Dewar assembly and optics
High electro-optic performance with low crosstalk, automatic anti-blooming at the pixel level, and excellent sensitivity

Windowing gives enhanced frame rates over selected areas of the array
Higher operating temperature than InSb.
Longer cooler life
Less in-service support
Lower through-life cost

Format

Array: 640 x 512 pixels
Pixel pitch: 16 µm
Active Area: 10.24 x 8.19 mm

Typical Performance

NETD (median): 17 mK
Pixel operability: >99.8%

Interface Parameters

Modes: Snapshot or rolling reset
Configuration control: Single serial interface
Output voltage range: 2.5 V
Charge capacity: 7 x 10⁶ electrons
Number of outputs: 4
Pixel rate: Up to 10 MHz per output
Intrinsic MUX noise: 50 µV rms
Array operating temperature: 80 - 100 K
Nominal operating voltage: 6 V
Minimum pins for operation: 16
Number of input clocks: 1
Window material: Germanium
Window thickness: 1.73 mm
Cold filter material: Silicon
Cold filter thickness: 0.4 mm

ICDA 6 W

Weight: 350 g
Power consumption: 6 W steady state
Cooling engine: Rotary Stirling engine
Operating temperature range: -40°C to +70°C

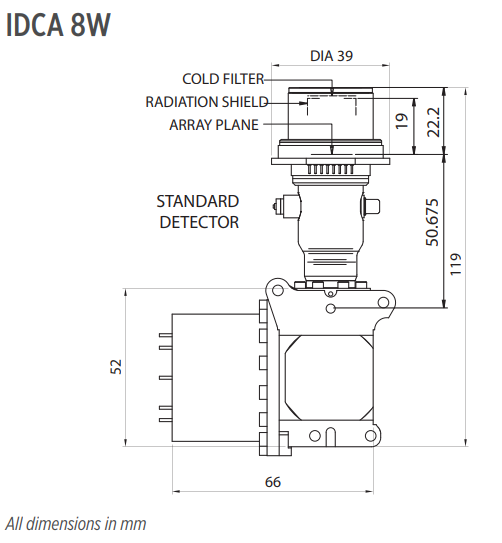

ICDA 8 W

Weight: 500 g
Power consumption: 8 W steady state
Cooling engine: Rotary Stirling engine
Operating temperature range: -40°C to +70°C
